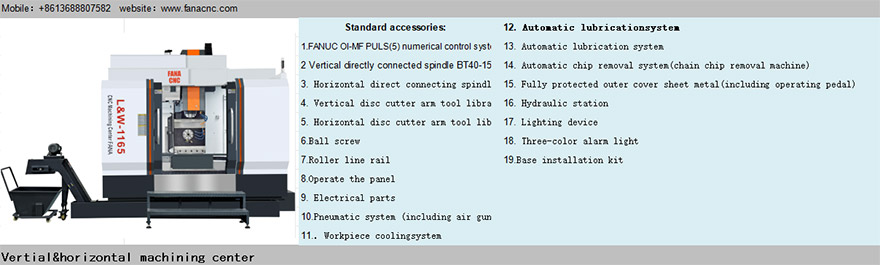

| Machine model | Unit | LW-1165 | |
| X axis travel | mm | 1100 | |
| Y axis travel | mm | 720（above worktable 580, below 140） | |
| Z axis travel | mm | 640 | |
| V axis travel | mm | 700 | |
| B axis travel (worktable rotating) | mm | 360° | |
| vertical spindle nose to rotary table | mm | 180-880 | |
| horizontal spindle nose to rotary table center | mm | 380-1020 | |
| horizontal spindle nose to rotary table | mm | 580~-140 | |
| Max. workpiece rotating diameter | Φ1600 | ||
| spindle max. speed | 10000 | ||
| spindle diameter | mm | 155 | |
| spindle taper | BT40 | ||
| ballscrew（X/Y/Z/V) | 4012/4012/4012/4012 | ||
| roller linear guides（X/Y/Z/V) | 45/45/45(four guides）45 | ||
| rapid feed（X/Y/Z/V) | m/mim | 36/20/36/20 | |
| cutting feed （X/Y/Z/V) | m/mim | 8 | |
| vertical spindle power | kw/Nm | BII 12(11kw-52.5Nm) | |
| horizontal spindle power | kw/Nm | BII 12(11kw-52.5Nm) | |
| axes power （X/Y/Z/V) | kw/Nm | BIS 22/3000(max.45Nm) | |
| rotary table power | kw/Nm | BII 22/2000(max.45Nm) | |
| postitioning accuracy | m/mim | ±0.005/300 | |
| repeatability | m/mim | ±0.005/300 | |
| tool changer | Max. tool weight | kg | 8 |
| Max. tool diam. (full tool) | mm | Φ78 | |
| Max. tool diam. (neigbour tool empty) | mm | Φ120 | |
| max. tool length | mm | 300 | |
| rotary table | worktable | mm | 630*630 |
| min. dexing degree | ° | 1 | |
| max. loading | kg | 500 | |
| machine weight | kg | 11000 | |
| machine size | m | 4.7*3.5*4 | |
