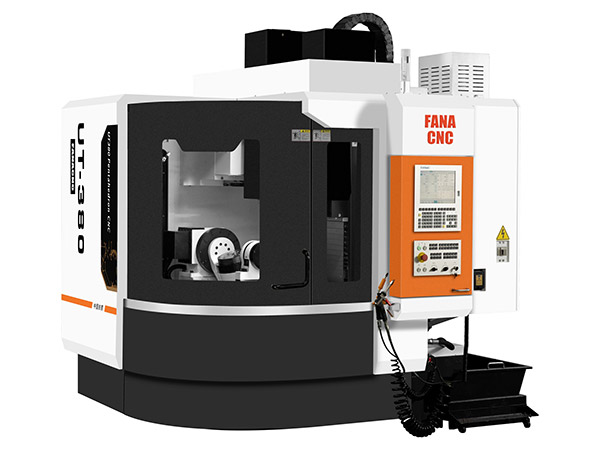

| Machine model | 单位 | UT-380 | |
| working travel | X axis travel | mm | 500 |
| Y axis travel | mm | 500 | |
| Z axis travel | mm | 450 | |
| A axis rotation degree | ° | 110°--110° | |
| C axis rotation degree | ° | 360° | |
| spindle nose to rotary table ( A axis 0°) | mm | 40-490 | |
| spindle nose to A axis rotating center (A axis 90°) | mm | 40-490 | |
| spindle nose to A axis endface (A axis 90°) | mm | 370 | |
| machining range | 380*370mm | ||
| rotary table (double direct drive) | Mounting flange diameter | mm | Φ260 |
| Disk center hole diameter | mm | Φ65 | |
| Max.loading | kg | 60 | |
| direct drive spindle | Diameter | mm | 120 |
| max.speed | rpm | 15000 | |
| power | kw | 7.5 | |
| spindle taper | BBT40 | ||
| axes | power | kw | 2/2/3 |
| A axis rated/max. torque | N.M | 259/460 | |
| C axis rated/max. torque | N.M | 122/223 | |
| rapid feed | XYZ | m/mim | 24 |
| A axis | m/mim | 5400 | |
| C axis | m/mim | 36000 | |
| cutting feed | XYZ | m/mim | 10 |
| A axis | m/mim | 4000 | |
| C axis | m/mim | 10000 | |
| positioning accuracy | XYZ | mm | 0.005/300 |
| A/C | Arc.sec | ±10 | |
| repeatability | XYZ | mm | 0.005/300 |
| A/C | Arc.sec | ±5 | |
| guides/ballscrew | X/Y/Z guides | mm | 30/30/35 |
| X/Y/Z ballscrew | 2812/2812/2812 | ||
| toolchanger | capacity | T | 24T arm tool changer |
| machine weight/dimension | machine weight | kg | 3800 |
| machine size | m | 2*2.4*2.3 | |
