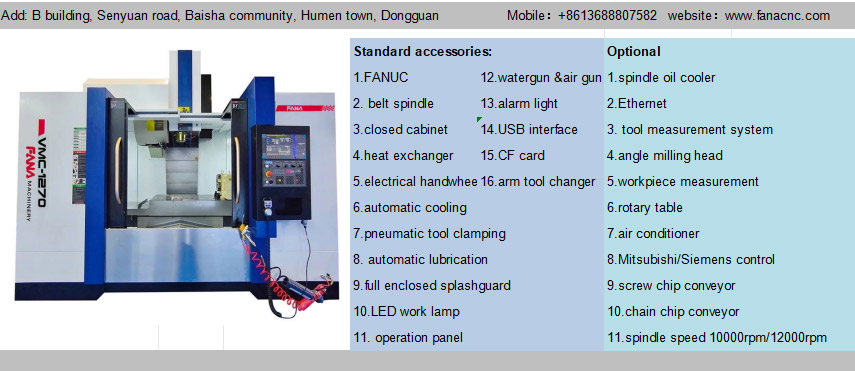

| Machine model | unit | FA-VMC856 | FA-VMC966 | FA-VMC1165 | FA-VMC1270 | FA-VMC1380 |
| worktable size | mm | 1000×550 | 1000×550 | 1200×600 | 1400×700 | 1500×800 |
| T-slot | 18T*5*100 | 18T*5*100 | 18T*5*100 | 18T*5*125 | 18T*5*150 | |
| Max. loading | kg | 600 | 600 | 800 | 800 | 900 |
| X axis travel | mm | 820 | 900 | 1100 | 1200 | 1300 |
| Y axis travel | mm | 550 | 600 | 650 | 700 | 800 |
| Z axis travel | mm | 600 | 600 | 600 | 700 | 700 |
| spindle nose to worktable | mm | 130-730 | 130-730 | 130-730 | 140-840 | 140-840 |
| spindle to column guides | mm | 640 | 640 | 710 | 770 | 870 |
| spindle taper/diam. | BT40(Φ155) | BT40(Φ155) | BT40(Φ155) | BT40(Φ155) | BT50(Φ155) | |
| spindle speed | rpm/min | 8000rpm | 8000rpm | 8000rpm | 8000rpm | 6000rpm/opt:8000 |
| spindle servomtor | kw | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 11/15/opt: 15/18.5 |
| CNC control | Fanuc 0i MF(5) | Fanuc 0i MF(5) | Fanuc 0i MF(5) | Fanuc 0i MF(5) | Fanuc 0i MF(5) | |
| rapid feed | m/min | 36/36/36 | 36/36/24 | 36/36/36 | 36/36/24 | 24/24/24 |
| Cutting speed | m/min | 1-12 | 1-12 | 1-12 | 1-12 | 1-8 |
| positioning accuracy | mm | ±0.004mm | ±0.004mm | ±0.005mm | ±0.005mm | ±0.006mm |
| repeatability | mm | ±0.003mm | ±0.003mm | ±0.004mm | ±0.004mm | ±0.005mm |
| guides(linear width/blocks Qty) | XY：45*2 Z:45*3 | XY：45*2 Z:45*3 | XZ：45*3 Y:45*2 | XZ：45*3 Y:45*2(4guides） | XZ：45*3 Y:45*2(4guides） | |
| Z axis balancing | option：nitrogen balancing system | option：nitrogen balancing system | option：nitrogen balancing system | option：nitrogen balancing system | option：nitrogen balancing system | |
| weight approxiamte | KG | 5600 | 6000 | 6500 | 8300 | 9000 |
